200W 240W Industrial LED High Bay Light

Shenzhen KHJ Semiconductor Lighting Co., Ltd
Contact Now

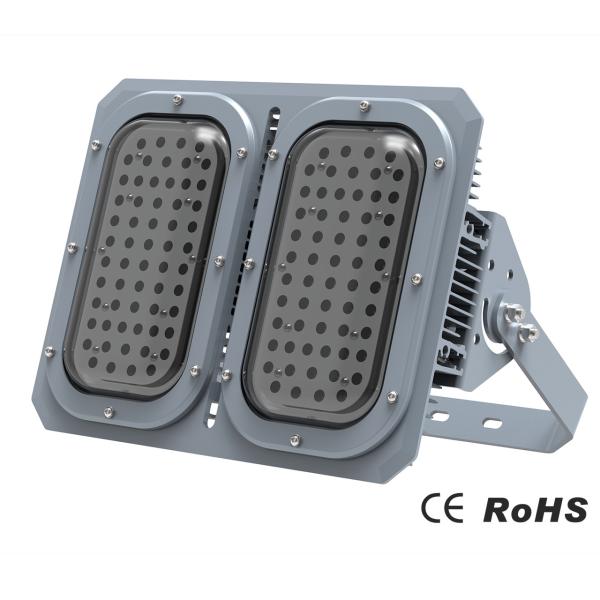

200W 240W Industrial LED High Bay Light

Brand Name : KHJ

Model Number : KPLB200,KPLB240

Certification : CE,RoHS

Place of Origin : Guangdong, China

MOQ : 1 pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 400pcs/day

Delivery Time : 3-8 work days

Packaging Details : 575*475*265mm

Enclosure Material : Die-casting aluminium alloy

Luminaire Efficacy : 147m/W

Lifespan : >50,000 hours

Operating Voltage : 100-277 VAC,141-392 VDC

Power : 200W,240W

Frequency : 50/60Hz

Power Factor : >0.98

THD : <10%

Contact Now

Polarbear Series Luminaire Efficacy 147m/W LED Industrial High Bay Light Lifespan >50,000 hours

Features And Benefits:

1. Energy saving. Reduce the number of luminaires needed, providing excellent luminaries efficacy and more light where you need it.

2. Anti- glare, reduces glare in applications where the user may have direct visual contact with the light source.

3. Shock and vibration resistant tempered glass, reduces the risk of premature failure.

4. High efficacy LED source. High lumen output and high CRI.

5. Driver module assembly High efficacy LED drivers are designed to provide reliable operation in even the harshest environments.

6. High strength aluminum alloy housing, can endure 20J impact. IP66, can be used in wet locations, robust construction suitable corrosive applications.

7. Adjusting plate, customer can adjust different angles.

8. Optional luminous intensity distribution for different applications.

9. Ambient temperature from -40ºC to 55ºC.

10. Life span> 50,000 hours.

11. Surge protection:5KV.

Specifications:

Certificate:CE,RoHS
Executive Standard:

EN 60598-1:2008+A11:2009 EN 60598-2-5:1998 EPA3052:1996
EN 55015:2006+A1:2007+A2:2009 EPA3050B:1996 EN1122B:2001
EN 61000-3-2:2006+A1:2009+A2:2009 EN 61547:2009 EN 61000-3-3:2008
EPA3060A:1996 EPA7196A:1992 EPA3540C:1996
EPA8270D:2007 IEC 62321:2008

Luminaire Efficacy: 147m/W
Lifespan:>50,000 hours
Operating Voltage: 100-277 VAC,141-392 VDC

Power:200W,240W

Frequency:50/60Hz

Power Factor: >0.98
THD:<10%
Insulation Class:
Surge Protection: 5KV
LED Driver: Over voltage protection/short circuit protection
Weight:18.4Kg
Size:500*400*161mm
Ambient Temperature: -40℃-+55℃
Connecting Terminals: 3*1.0mm²(L+N+PE)
Cable Entries: 2XM25*1.5 (NPT 3/4”,M20*1.5 are optional)
Earthing Protection: M4 (Internal & external earth bolts)
IP Code: IP66
Enclosure Material: Die-casting aluminium alloy
Enclosure Colour: Grey RAL7040
Coating: Epoxy powder coating
Exposed Fastener: Stainless steel
Protective Cover: Tempered glass,Stand 7J impact

Applications:

1. Cement plants
2. Warehouse
3. Factory
4. Power Genera
5. Power Transmission
6. Shipping industry
200W 240W Industrial LED High Bay Light

Ordering Information:

P/N

Operating Voltage(V)

Luminous Flux(lm)

Power(W)

CRI

Color Temp.

CCT(K)

KPLB200*WM-E

100-277 AC

(141-392 DC)

27300 200 70 Warm white 3000±300
KPLB200*NH-E 29400 200 70 Natural white 4000±300
KPLB200*NH-E 29400 200 70 Natural white 5000±300
KPLB200*CH-E 29400 200 70 Cool white 5700±300
KPLB240*WM-E 32760 240 70 Warm white 3000±300
KPLB240*NH-E 35280 240 70 Natural white 5000±300
KPLB240*NH-E 35280 240 70 Natural white 4000±300
KPLB240*CH-E 35280 240 70 Cool white 5700±300

Remarks:

1. * Stands for beam angle,including H1V1 / H4V4 / H5V5 / H6V6 / FW;

2. For Beam angle H1V1,H4V4 and H5V5,the luminous flux will be 15% less;

3. For Beam angle FW,the luminous flux will be 30% less.

Candela Distribution:

200W 240W Industrial LED High Bay Light

Installation Method:

200W 240W Industrial LED High Bay Light

Competitive advantages of our factory:

1. Very competitive price and high quality control.

2. Timely delivery.

3. Environmentally friendly products.

4. Various designs.
