Tank Series 320W 400W 480W Industrial LED Flood Light Power Factor > 0.98
Features And Benefits:
1. High efficacy LED Source with long lifespan>100,000 hours
2.5-year performance warranty
3.Low THD around 10%,Less interference
4.6KV Surge Protection
5.Robust aluminium housing and strong tempered glass
6.Vibration and shock resistant
7.Low maintenance
8.Dust proof structure design to avoid dust accumulation
Specifications:
Certificate:CE,RoHS
Executive Standard:
| IEC 62321-4:2013+AMD1:2017 | IEC 62321-5:2013 | IEC 62321-6:2015 |
| EN 55015:2013/A1:2015 | IEC 62321-7-1:2015 | IEC 62321-7-2:2017 |
| EN 61000-3-2:2006+A1:2009+A2:2009 | IEC 62321-8:2017 | EN 61547:2009 |
| EN 61000-3-2:2014 | EN 62493:2015 | EN 61000-3-3:2013/A1:2019 |
| EN 60598-1:2015+A1:2018 | EN 60598-2-5:2015 | EN 62031:2008+A1:2013+A2:2015 |
Luminaire Efficacy: 152m/W
Lifespan:>50,000 hours
Operating Voltage: 100-277 VAC,20-30 VAC,347-480 VAC,141-391VDC,491-679 VDC
Power:320W,400W,480W
Frequency:50/60Hz
Power Factor: ＞0.98
THD:＜10%
Insulation Class: Ⅰ
Surge Protection: 6KV
LED Driver: Over voltage protection/short circuit protection
Weight:36Kg
Size:671*426*142mm
Ambient Temperature: -40℃-+55℃
Connecting Terminals: 3*1.0mm²(L+N+PE)
Cable Entries: 2XM20*1.5 (NPT 3/4”,M25*1.5 are optional)
Earthing Protection: M4 (Internal & external earth bolts)
IP Code: IP66
Enclosure Material: Die-casting aluminium alloy
Enclosure Colour: Grey RAL7040
Coating: Epoxy powder coating
Exposed Fastener: Stainless steel
Protective Cover: Tempered glass,Stand 7J impact

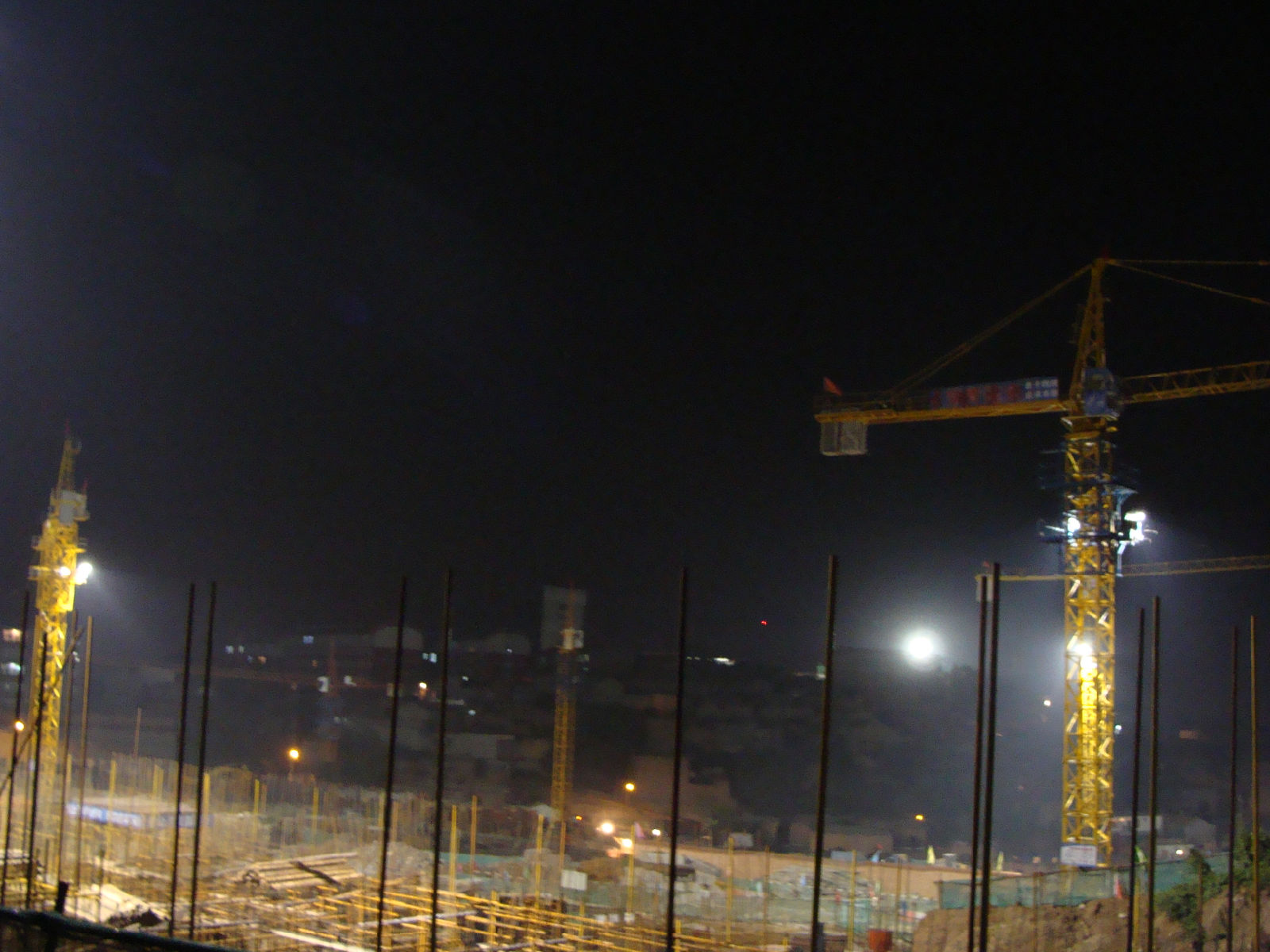

Applications:
1. Cement plants
2. Warehouse
3. Factory
4. Power Genera
5. Power Transmission
6. Shipping industry
Ordering Information:
| P/N | Operating Voltage(V) | Luminous Flux(lm) | Power(W) | CRI | Color Temp. | CCT(K) |
| KTK320**CH-S4-E | 100-277 VAC (141-392 VDC) | 46400 | 320 | 70 | Cool white | 5700±300k |
| KTK320**NH-S4-E | 46400 | 70 | Natural white | 5000±300k |
| KTK320**NH-S4-E | 46400 | 70 | Natural white | 4000±300k |
| KTK320**WM-S4-E | 41760 | 70 | Warm white | 3000±300k |
| KTK400**CH-S4-E | 58054 | 400 | 70 | Cool white | 5700±300k |
| KTK400**NH-S4-E | 58054 | 70 | Natural white | 5000±300k |
| KTK400**NH-S4-E | 58054 | 70 | Natural white | 4000±300k |
| KTK400**WM-S4-E | 52248 | 70 | Warm white | 3000±300k |
| KTK480 ** CH-S4-E | 69120 | 480 | 70 | Cool white | 5700±300k |
| KTK480 ** NH-S4-E | 69120 | 70 | Natural white | 5000±300k |
| KTK480 ** NH-S4-E | 69120 | 70 | Natural white | 4000±300k |
| KTK480 ** WM-S4-E | 62208 | 70 | Warm white | 3000±300k |
Remarks:
1.The first * stands for Operating Voltage including default-100 - 277 VAC , D-347-480VAC ,E-20-30VAC.
2.The second * stands for Candela Distribution including H3V3,H5V5,H6V6.
Candela Distribution:
Installation Method:
|
|
Tank Series 320W 400W 480W Industrial LED Flood Light Power Factor > 0.98 Images
|
