Sealion Series 200W 240W 300W Industrial LED Flood Light Power Factor > 0.98
Features And Benefits:
1. High efficacy LED Source with long lifespan>50,000 hours
2. 5-year performance warranty
3. Low THD around 8%,Less interference
4. 5KV Surge Protection
5. Robust aluminium housing and strong tempered glass
6. Vibration and shock resistant
7. Low maintenance
Specifications:
Certificate:CE,RoHS
Executive Standard:
| EN 60598-1:2015+A1:2018 | EN 60598-2-5:2015 | EN 62031:2008+A1:2013+A2:2015 |
| EN 62471:2008 | EN 62493:2015 | IEC 62321-4:2017 |
| IEC 62321-5:2013 | IEC 62321-6:2015 | IEC 62321-7-1:2015 |
| IEC 62321-7-2:2017 | IEC 62321-7-2:2017 | IEC 62321-8:2017 |
Luminaire Efficacy: 140m/W
Lifespan:>50,000 hours
Operating Voltage: 100V-277V/347-480V/141V-392V/491V-679V
Power:200W,240W,300W
Frequency:50/60Hz
Power Factor: ＞0.98
THD:＜10%
Insulation Class: Ⅰ
Surge Protection: 5KV
LED Driver: Over voltage protection/short circuit protection
Weight:12.3Kg
Size:φ 415*168mm
Ambient Temperature: -40℃-+55℃
Connecting Terminals: 3*1.0mm²(L+N+PE)
Cable Entries: 1XM16,equipped with 1 meter cable
Earthing Protection: M4 (Internal & external earth bolts)
IP Code: IP66
Enclosure Material: Die-casting aluminium alloy
Enclosure Colour: Grey RAL7040
Coating: Epoxy powder coating
Exposed Fastener: Stainless steel
Protective Cover: Tempered glass,Stand 7J impact
Applications:
1. Cement plants
2. Warehouse
3. Factory
4. Power Genera
5. Power Transmission
6. Shipping industry
Ordering Information:
| P/N | Rated voltage(V) | Lumino us Flux(lm) | Power | CRI | Color temp. | CCT(K) |
| KSL200*WM-E | 100~277 (141~392) | 27350 | 200 | 70 | Warm white | 3000±300 |
| KSL200*NH-E | 30389 | 200 | 70 | Natural white | 4000±300 |
| KSL200*NH-E | 30389 | 200 | 70 | Natural white | 5000±300 |
| KSL200*CH-E | 30389 | 200 | 70 | Cool white | 5700±300 |
| KSL240*WM-E | 32140 | 240 | 70 | Warm white | 3000±300 |
| KSL240*NH-E | 35711 | 240 | 70 | Natural white | 4000±300 |
| KSL240*NH-E | 35711 | 240 | 70 | Natural white | 5000±300 |
| KSL240*CH-E | 35711 | 240 | 70 | Cool white | 5700±300 |
| KSL300*WM-E | 38273 | 300 | 70 | Warm white | 3000±300 |
| KSL300*NH-E | 42525 | 300 | 70 | Natural white | 4000±300 |
| KSL300*NH-E | 42525 | 300 | 70 | Natural white | 5000±300 |
| KSL300*CH-E | 42525 | 300 | 70 | Cool white | 5700±300 |
Remarks:
1.*Stands for beam angle , including H4V4 / H5V5 / H6V6.
2.For beam angle H4V4 and H5V5,the luminous flux will be 15% less.
Candela Distribution:

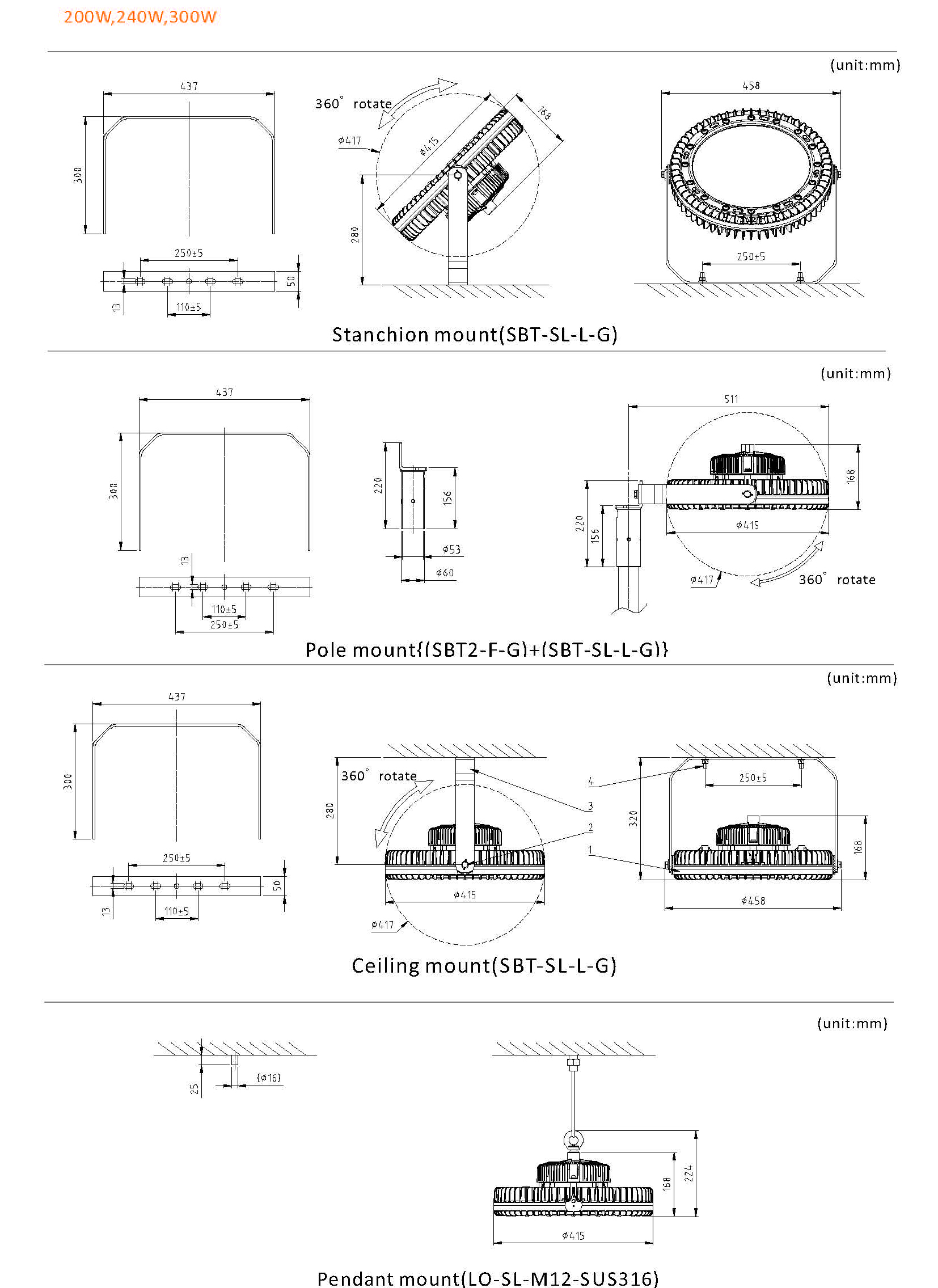

Installation Method:
