18W-48W 2ft Zone 1 Explosion Proof Lighting

Brand Name : KHJ

Model Number : Ex-KSF18,Ex-KSF36,Ex-KSF48

Certification : ATEX,IECEx,CE,RoHS

Place of Origin : Guangdong, China

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 400pcs per day

Delivery Time : 3-8 work days

Packaging Details : 704*281*155mm

Product Name : Swordfish Series

Working Voltage : 100-277 VAC/24-48 VAC;10-30 VDC/24-48 VDC/141-392 VDC

Power Range : 18W~48W

Luminaire Efficacy : 136.5lm/W

Area Classification : Group II Zone 1 & 21 and 2 & 22

Connecting Terminals : 3*1.0-4mm²(L+N+PE)

Available cable outer diameter : φ7-φ14(mm)

Cable Entries : 2XNPT 3/4” (M20*1.5, M25*1.5 are optional)

Contact Now

Flameproof linear fixture Zone 1 Explosion Proof LED Lighting 18W 36W 48W 2ft

Explosion proof LED lighting Ex-Swordfish Series 18W 36W 48W

Highlight:Flameproof Led light, Explosion proof LED lighting.

Features And Benefits:

1. KHJ Swordfish series Explosion proof LED Linear light fixtures are suitable for Zone 1 – 2 (gas) and Zone 21 – 22 (dust).

2. ATEX & IEC Ex certified by TUV.

3. Copper-free aluminum alloy body plus Strong tempered glass cover.

4. 2 cable entries are designed to allow any loop-in loop-out installation.

5. High lamp efficacy, up to 140lumen per watt.

6. The light fitting can be installed using different mounting types.

7. Available in 3 hour emergency version.

8. 5 Years warranty(excluding battery backup version).

Product Important Information:

Type Of Protection	Ex d eb ,Ex tb
Protection Standards	(IEC)EN 60079-0, (IEC)EN 60079-1, (IEC)EN 60079-7, (IEC)EN 60079-28, (IEC)EN 60079-31 EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 60598-1, EN 60598-2-5, EN 62031, EN 62493, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-7-2, IEC 62321-8
Area Classfiction	Zone 1 and Zone 2 Areas to (IEC)EN 60079-10-1,Zone 21 and Zone 22 Areas to (IEC)EN 60079-10-2
Installation	(IEC)EN 60079-14
Certificate	IECEx_TUR_16.0028X/TÜV 15 ATEX 7673 X
Equipment Coding	□Ex d eb op is IIB T6 Gb ,Ex tb op is IIIC T80℃ Db □Ex d eb op is IIC T6 Gb , Ex tb op is IIIC T80℃ Db
Temperature Class	Rated power (W)	-20℃ ≤ Ta ≤ +55℃
		Gas	Dust
	18W~48W	T6	T80℃
ATEx Coding	II 2 G / II 2 D
Ingress Protection	IP66 (IEC)EN 60529
Cable entry	M201.5,M251.5,3/4 NPT
CE Mark	The CE marking of this product applies to EU directives 2014/35/EU, 2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively. The Equipment is declared to meet the provisions of the ATEX directive(2014/34/EU)by reason of the EC Type Examination and compliance with the Essential Health and Safety Requirements

Applications:

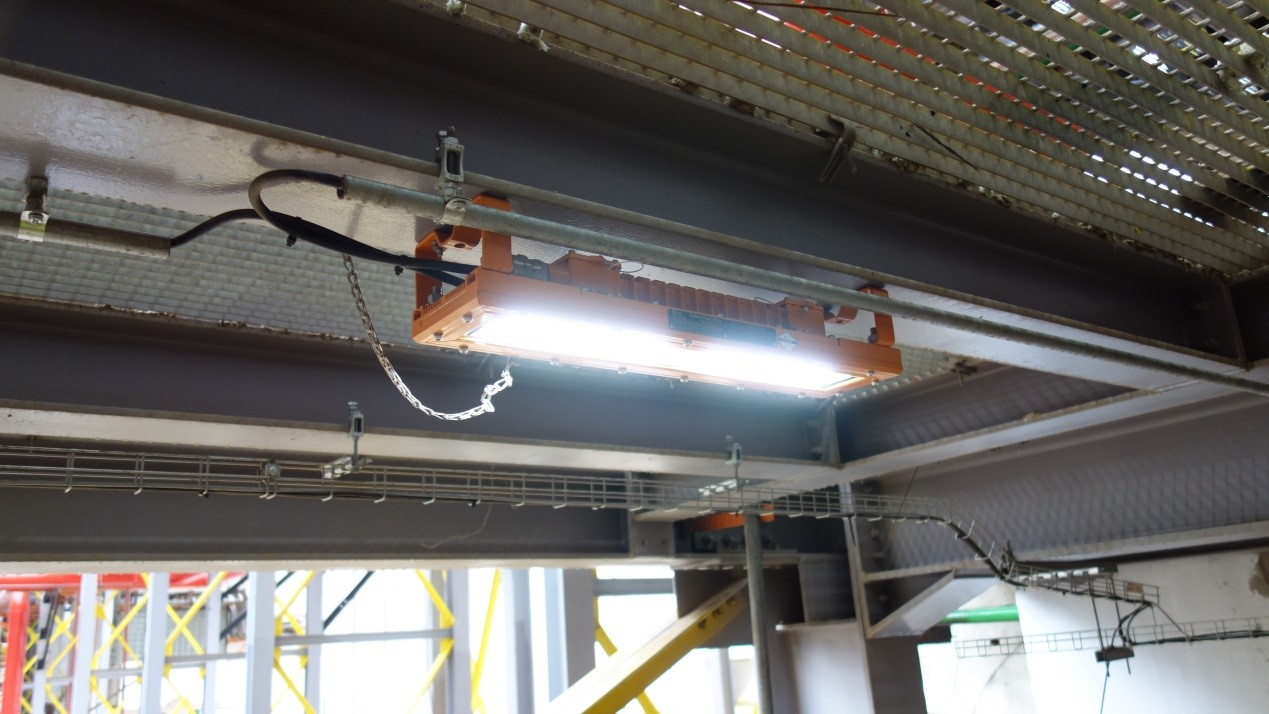

The Ex-Swordfish series LED linear light fittings are normally used in Onshore &Offshore platforms, petroleum refineries, petrochemical and chemical factories, gasoline storage areas, paint booths, spray finishing areas and fuel servicing areas.
18W-48W 2ft Zone 1 Explosion Proof Lighting

Ordering information:

P/N	Operating Voltage(V)	Luminous Flux(lm)	Power(W)	CRI	Color Temp.	CCT(K)	Temp. Classification
Ex-KSF18600H7V7WM-E	100-277 AC(141-392 DC)	2268	18	82	Warm white	3000±300	T6
Ex-KSF18600H7V7NH-E		2457	18	70	Natural white	4000±300
Ex-KSF18600H7V7NH-E		2457	18	70	Natural white	5000±300
Ex-KSF18600H7V7CH-E		2457	18	70	Cool white	5700±300
Ex-KSF36600H7V7WM-E		4536	36	82	Warm white	3000±300
Ex-KSF36600H7V7NH-E		4914	36	70	Natural white	4000±300
Ex-KSF36600H7V7NH-E		4914	36	70	Natural white	5000±300
Ex-KSF36600H7V7CH-E		4914	36	70	Cool white	5700±300
Ex-KSF48600H7V7WM-E		6048	48	82	Warm white	3000±300
Ex-KSF48600H7V7NH-E		6552	48	70	Natural white	4000±300
Ex-KSF48600H7V7NH-E		6552	48	70	Natural white	5000±300
Ex-KSF48600H7V7CH-E		6552	48	70	Cool white	5700±300
