ATEX&IEC EX Approved Zone 1 LED Explosion Proof light fixture Forestfrog series 30W 45W 60W
Explosion proof lighting fixture Ex-Forestfrog Series 30W 45W 60W
Highlight: LED Explosion proof light fixture.
Features And Benefits:
1. Compact and lightweight high strength Aluminum alloy body.
2. High efficient LED Technology ensures long life and high reliability.
3. Offering maximum energy savings, reduce maintenance costs.
4. The high-efficiency lighting fixture is available in Narrow, Medium and Wide beam angle.
5. Wide range of ambient temperatures from -40 °C to +55 °C.
6. 5 Years performance warranty.
7. Easy installation and low maintenance.
Product Important Information:
| Type Of Protection | Ex db, Ex db eb, Ex tb |
| Protection Standards | (IEC)EN 60079-0, (IEC)EN 60079-1, (IEC)EN 60079-7, (IEC)EN 60079-28, (IEC)EN 60079-31 EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 60598-1, EN 60598-2-5, EN 62031, EN 62493, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-7-2, IEC 62321-8 |
| Area Classfiction | Zone 1 and Zone 2 Areas to (IEC)EN 60079-10-1,Zone 21 and Zone 22 Areas to (IEC)EN 60079-10-2 |
| Installation | (IEC)EN 60079-14 |
| Certificate | EPT 18 ATEx 2977 X |
| Equipment Coding | □Ex db op is IIC T* Gb,Ex tb op is IIIC T* Db □Ex db eb op is IIC T* Gb,Ex tb op is IIIC T* Db |
| Temperature Class | Rated power (W) | -40℃ ≤ Ta ≤ +40℃ | -40℃ ≤ Ta ≤ +55℃ |
| Gas | Dust | Gas | Dust |
| 30W | T6 | T80℃ | T5 | T95℃ |
| 45W | T6 | T80℃ | T5 | T95℃ |
| 60W | T5 | T95℃ | T4 | T130℃ |
| ATEx Coding |  II 2 G / II 2 D |
| Ingress Protection | IP66 (IEC)EN 60529 |
| Cable entry | M20*1.5 or M25*1.5 and 3/4 NPT |
| CE Mark | The CE marking of this product applies to EU directives 2014/35/EU, 2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively. The Equipment is declared to meet the provisions of the ATEX directive(2014/34/EU)by reason of the EC Type Examination and compliance with the Essential Health and Safety Requirements |
Applications:
The Ex-forestfrog series Explosion proof lighting fixtures can be used in harsh and specialty environments such as petroleum and chemical industries, Pharmaceutical Industry,gas stations, Refinery factory, Oil and gasoline loading docks, military, airports and marine.
Ordering information:
| P/N | Operating Voltage(V) | Luminous Flux(lm) | Power(W) | CRI | Color Temp. | CCT(K) | Temp. Classification |
| -40℃~ +40℃ | -40℃~ +55℃ |
| Ex-KFF30*WM-J-E | 100~277 AC(141~ 392 DC) | 3780 | 30 | 70 | Warm white | 3000±300 | T6 | T5 |
| Ex-KFF30*NH-J-E | 4095 | 30 | 70 | Natural white | 4000±300 | T6 | T5 |
| Ex-KFF30*NH-J-E | 4095 | 30 | 70 | Natural white | 5000±300 | T6 | T5 |
| Ex-KFF30*CH-J-E | 4095 | 30 | 70 | Cool white | 5700±300 | T6 | T5 |
| Ex-KFF45*WM-J-E | 5670 | 45 | 70 | Warm white | 3000±300 | T6 | T5 |
| Ex-KFF45*NH-J-E | 6142 | 45 | 70 | Natural white | 4000±300 | T6 | T5 |
| Ex-KFF45*NH-J-E | 6142 | 45 | 70 | Natural white | 5000±300 | T6 | T5 |
| Ex-KFF45*CH-J-E | 6142 | 45 | 70 | Cool white | 5700±300 | T6 | T5 |
| Ex-KFF60*WM-J-E | 7560 | 60 | 70 | Warm white | 3000±300 | T5 | T4 |
| Ex-KFF60*NH-J-E | 8190 | 60 | 70 | Natural white | 4000±300 | T5 | T4 |
| Ex-KFF60*NH-J-E | 8190 | 60 | 70 | Natural white | 5000±300 | T5 | T4 |
| Ex-KFF60*CH-J-E | 8190 | 60 | 70 | Cool white | 5700±300 | T5 | T4 |
Remarks:
1. *Stands for candela distribution, including H1V1 / H5V5 / H6V6/F/FW;
2. For beam angle H1V1/H5V5,the luminous flux will be 8% less;
3. For beam angle FW/F,the luminous flux will be 25% less.
Product Tags:
|
|

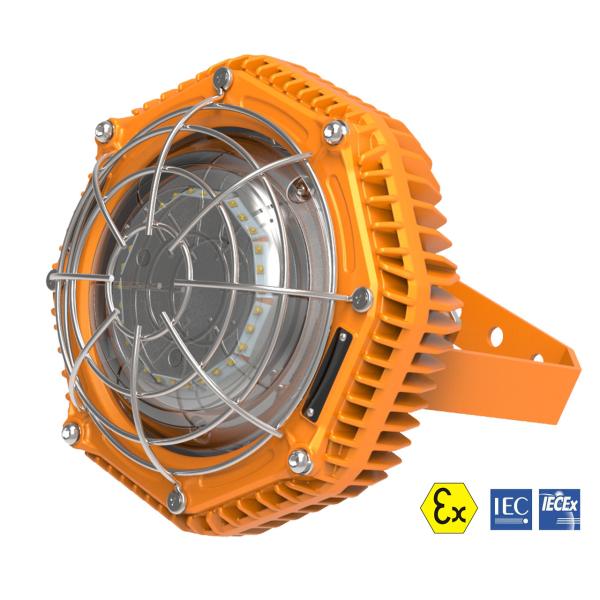

IECEX Zone 1 Hazardous Area Lighting 30W-60W Images
|
