ATEX certified Explosion Proof LED Light fitting 18W 30W Linear light
Ex-Arowana Series Explosion proof led light 18W 30W
Highlight: Explosion proof LED lighting fixture.
Features And Benefits:
1. IEC EX and ATEX Certified explosion proof led linear light for oil and gas hazardous areas.
2. High strength Die-cast Aluminum alloy housing with anti-corrosion powder coated.
3. Strong Tempered glass with thickness 10mm, impact resistance.
4. High efficacy Led source, high lumen output.
5. Low THD <10%,less interference.
6. Surge protection:5KV.
7. All external hardware are stainless steel.
8. wide range of ambient temperatures from -40 °C to +55 °C.
9. 5 Years performance warranty.
Product Important Information:
| Type Of Protection | Ex d, Ex t |
| Protection Standards | (IEC)EN 60079-0, (IEC)EN 60079-1,(IEC)EN 60079-31
EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3,
EN 60598-1, EN 60598-2-5, EN 62031, EN 62493,
IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-7-2, IEC 62321-8 |
| Area Classfiction | Zone 1 and Zone 2 Areas to (IEC)EN 60079-10-1,Zone 21 and Zone 22 Areas to (IEC)EN 60079-10-2 |
| Installation | (IEC)EN 60079-14 |
| Certificate | LCIE 12 ATEX 3069 X / 01 |
| Equipment Coding | Ex d IIB T6 Gb
Ex tb IIIC T80℃ Db IP66 |
| Temperature Class | -40℃ ≤ Ta ≤ +55℃ |
| Gas | Dust |
| T6 | T80℃ |
| ATEx Coding |  II 2 G D |
| Ingress Protection | IP66 (IEC)EN 60529 |
| Cable entry | M20*1.5 or M25*1.5 and 3/4 NPT |
| CE Mark | The CE marking of this product applies to EU directives 2014/35/EU, 2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively.
The Equipment is declared to meet the provisions of the ATEX directive(2014/34/EU)by reason of the EC
Type Examination and compliance with the Essential Health and Safety Requirements |
Applications:
The Ex-Arowana series Explosion proof lighting fixture can be widely used for Zone 1& Zone 2 and Zone 21 &Zone 22 hazardous areas including upstream and downstream oil and gas, petrochemical, mining and heavy manufacturing applications.
Ordering information:
P/N | Operating Voltage(V) | Luminous Flux(lm) | Power (W) | CRI | Color Temp. | CCT(K) | Temp. Classification |
| Ex-KAF18WM-E | 100~240 AC (141~339 DC) | 1476 | 18 | 70 | Warm white | 3000±300 | T6 |
| Ex-KAF18NH-E | 1800 | 18 | 70 | Natural white | 4000±300 | T6 |
| Ex-KAF18NH-E | 1800 | 18 | 70 | Natural white | 5000±300 | T6 |
| Ex-KAF18CH-E | 1800 | 18 | 70 | Cool white | 5700±300 | T6 |
| Ex-KAF30WM-E | 2460 | 30 | 70 | Warm white | 3000±300 | T6 |
| Ex-KAF30NH-E | 3000 | 30 | 70 | Natural white | 4000±300 | T6 |
| Ex-KAF30NH-E | 3000 | 30 | 70 | Natural white | 5000±300 | T6 |
| Ex-KAF30CH-E | 3000 | 30 | 70 | Cool white | 5700±300 | T6 |
What are our advantages?
1.Professional lighting manufacturer for more than 10 years.
2. Gold supplier.
3. Provide high quality products and best service.
4. Good production capacity and fast delivery.
|
|

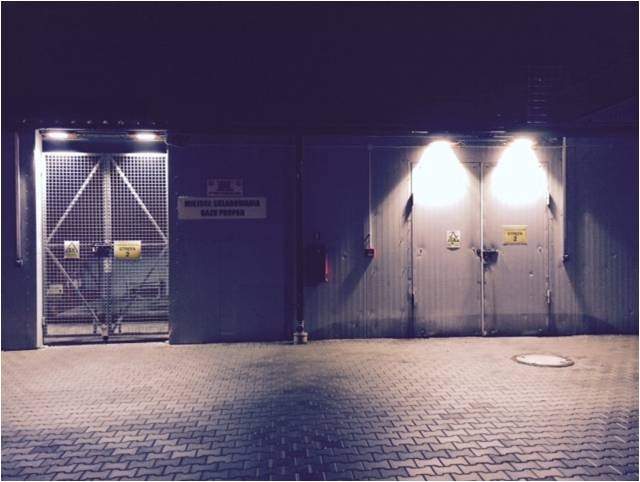

ATEX certified Explosion Proof LED Light fitting 18W 30W Linear light Images
|
