Ex Polar Bear 200W and 240W LED Explosion Proof Lights Zone 2,22

Brand Name : KHJ

Model Number : Ex-KPLB200,Ex-KPLB240

Certification : ATEX,IECEx,CE,RoHS

Place of Origin : Guangdong, China

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 400pcs per day

Delivery Time : 3-8 work days

Packaging Details : 575*475*265mm

Product Name : Polar Bear series

Operating Voltage : 100-130 VAC, 220-240 VAC/141-184 VDC, 311-339 VDC

Power : 200W，240W

Luminaire Efficacy : 147m/W

Area Classification : Group II Zone 2 & 22

Enclosure Colour : Orange,RAL2011(optional grey RAL7040)

Coating : Epoxy powder coating

Exposed Fastener : Stainless steel

Contact Now

Ex Polar Bear 200W and 240W LED Explosion Proof Lights Zone 2,22

Ex Polar Bear 200W and 240W LED Explosion Proof Lighting

Highlight: LED Explosion Proof LED Lights, Zone 2,22.

Features And Benefits:

1. Energy saving. Reduce the number of luminaires needed, providing excellent luminaries efficacy more light where you need it.

2. High efficiency LED source,designed to provide reliable operation in even harshest environment.

3. High strength aluminum alloy housing.

4. IP66,Can be used in wet locations,robust construction suitable for corrosive applications.

5. Ambient temperature from -40℃to 55℃.

6. Life span> 50,000 hours.

Product Important Information:

Type Of Protection	Ex nR,Ex tc
Protection Standards	(IEC)EN 60079-0, (IEC)EN 60079-15,(IEC)EN 60079-31 EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 60598-1, EN 60598-2-5, EN 62031, EN 62493, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-7-2, IEC 62321-8
Area Classfiction	Zone 1 and Zone 2 Areas to (IEC)EN 60079-10-1, Zone 21 and Zone 22 Areas to (IEC)EN 60079-10-2
Installation	(IEC)EN 60079-14
Certificate	IECEx CQM 13.0044X			LCIE 14 ATEX 1014 X
Equipment Coding	Ex nR IIC T4 or T5 or T6 Gc Ex tc IIIC T130℃ or T95℃ or T80℃ Dc IP66			Ex nR IIC T* Gc Ex tc IIIC T* Dc IP66
Temperature Class	Rated Power	Rated Voltage	-40℃ ≤ Ta ≤ +40℃				-40℃ ≤ Ta ≤ +55℃
			Gas		Dust	Gas		Dust
	200W	100~130VAC 220~240VAC 50/60Hz	T6		T80℃	T5		T95℃
	240W		T5		T95℃	T4		T130℃
ATEx Coding	II 2 G / II 2 D
Ingress Protection	IP66 (IEC)EN 60529
Cable entry	M201.5 or M251.5 and 3/4 NPT
CE Mark	The CE marking of this product applies to EU directives 2014/35/EU, 2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively. The Equipment is declared to meet the provisions of the ATEX directive(2014/34/EU)by reason of the EC Type Examination and compliance with the Essential Health and Safety Requirements

Applications:

1. Pharmaceutical Plant
2. Drilling
3. Power Plant
4. Petrochemical Plant
5. Oil Reﬁnery
6. Oil&Gas Exploration

Ex Polar Bear 200W and 240W LED Explosion Proof Lights Zone 2,22

Ordering information:

P/N	Operating Voltage(V)	Luminous Flux(lm)	Power(W)	CRI	Color Temp.	CCT(K)	Temp. Classification
Ex-KPLB200*WM-E	100-277 AC (141-392 DC)	27300	200	70	Warm white	3000±300	T6/T5
Ex-KPLB200*NH-E		29400	200	70	Natural white	4000±300	T6/T5
Ex-KPLB200*NH-E		29400	200	70	Natural white	5000±300	T6/T5
Ex-KPLB200*CH-E		29400	200	70	Cool white	5700±300	T6/T5
Ex-KPLB240*WM-E		32760	240	70	Warm white	3000±300	T5/T4
Ex-KPLB240*NH-E		35280	240	70	Natural white	5000±300	T5/T4
Ex-KPLB240*NH-E		35280	240	70	Natural white	4000±300	T5/T4
Ex-KPLB240*CH-E		35280	240	70	Cool white	5700±300	T5/T4

Remarks:

1. * Stands for beam angle,including H1V1 / H4V4 / H5V5 / H6V6 /FW;

2. For Beam angle H1V1,H4V4 and H5V5,the luminous ﬂux will be 15% less;

3. For Beam angle FW,the luminous ﬂux will be 30% less.

What are our advantages?

1.Professional lighting manufacturer for more than 10 years.
2. Gold supplier.
3. Provide high quality products and best service.
4. Good production capacity and fast delivery.

Why buy from us instead of buying from other suppliers?

1. Good location and convenient transportation.

2. ATEX, IECEx, CE, RoHS certification.

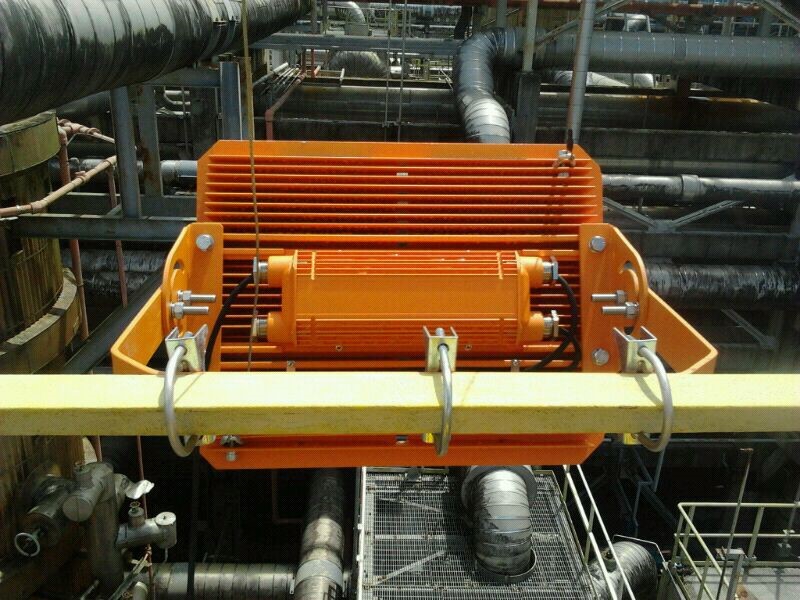

Ex Polar Bear 200W and 240W LED Explosion Proof Lights Zone 2,22 Images
