LED explosion proof lights, 5-60W dimmable, for maintenance and workover

Brand Name : KHJ

Model Number : Ex-KSTB24

Certification : ATEX,IECEx,CE,RoHS

Place of Origin : Guangdong, China

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 400pcs per day

Delivery Time : 3-8 work days

Packaging Details : 680*370*285mm

Product Name : Saturn Series

Operating Voltage : 100-277 VAC, 141-391VDC

Power range : 5W-60W

Luminaire Efficacy : 126lm/W

Area Classification : Group II Zone 1 & 21 and 2 & 22

Lifespan : >50,000 hours

Battery Rated Capacity : 12Ah

Rated Capacity : Lead-acid batteries

Contact Now

LED explosion proof lights, 5-60W dimmable, for maintenance and workover

Ex-Saturn Series Explosion Proof LED mobile light,5-60W

Highlight: LED Explosion proof Mobile Lighting Zone 1&2,Zone 2&22

Features And Benefits:

1. Using high efficacy LUMI LED source,high output.

2. 5-60W dimmable .Providing better lighting and extending the working time.

3. Rechargeable lead acid batteries with 4~12 hours battery backup.

4. Robust, durable and lightweight construction.

5. ATEX Certified.

Product Important Information:

Type Of ProtectionEx d e
Protection Standards

(IEC)EN 60079-0, (IEC)EN 60079-1, (IEC)EN 60079-7
EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3,
EN 60598-1, EN 60598-2-5, EN 62031, EN 62493,
IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-7-2, IEC 62321-8

Area ClassfictionZone1 & Zone 2 Areas to (IEC)EN 60079-10-1,
Installation(IEC)EN 60079-14
CertificateATExECM 17 ATEX-B TD45
IECExIECEx CQM 16.0005X
Equipment CodingEx d e IIC T5 Gb IP54
Temperature Class-20℃ ≤ Ta ≤ +55℃
ATEx CodingLED explosion proof lights, 5-60W dimmable, for maintenance and workoverII 2 G
Ingress ProtectionIP54 (IEC)EN 60529
CE Mark

The CE marking of this product applies to EU directives 2014/35/EU, 2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively.
The Equipment is declared to meet the provisions of the ATEX directive(2014/34/EU)by reason of the EC
Type Examination and compliance with the Essential Health and Safety Requirements

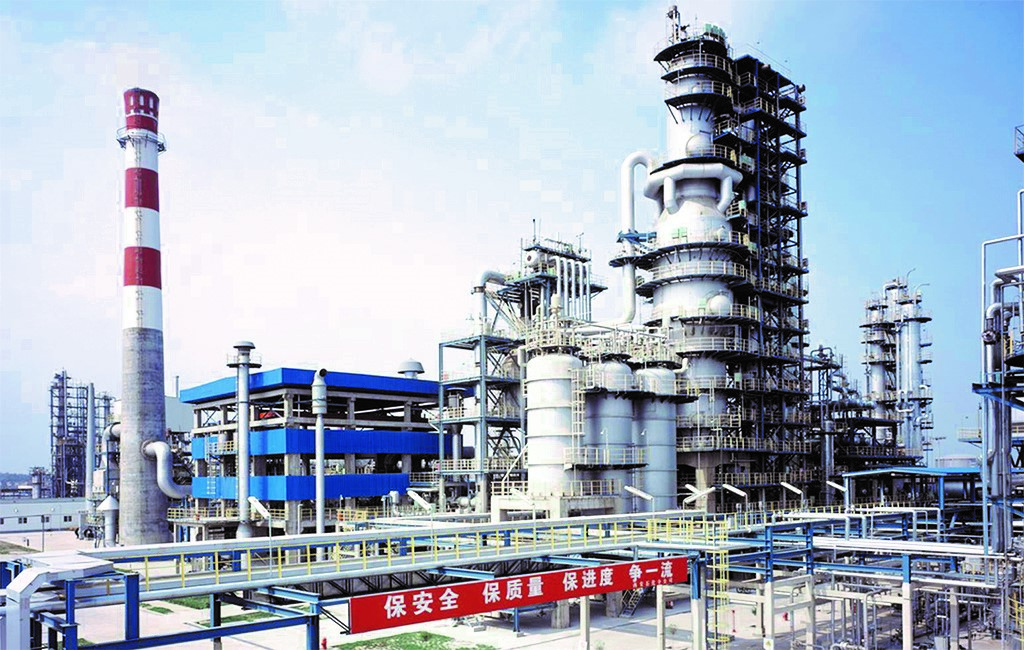

Applications:
Can be widely used for hazardous area Zone 1&2 ,Zone 21&22.
1.Oil tank
2.Railway
2.Refineries
4.Power station
5. For workover and maintenance
LED explosion proof lights, 5-60W dimmable, for maintenance and workover

Ordering information:

P/N

Operating Voltage(V)

Color Temp.

CCT(K)

Power

(W)

CRI

Luminous Flux(lm)

Temp. Classification

-20℃

~+55℃

Ex-KSTB24V12FFWM-U-E

100~277 AC(141 ~392 DC)

Warm white

3000±300

15701740

T5

30703480
60706950

Ex-KSTB24V12FFNH-U-E

Natural white

4000±300

15701890
30703780
60707560

Ex-KSTB24V12FFNH-U-E

Natural white

5000±300

15701890
30703780
60707560

Ex-KSTB24V12FFCH-U-E

Cool white

5700±300

15701890
30703780
60707560


What are our advantages?
1.Professional lighting manufacturer for more than 10 years.
2. Gold supplier.
3. Provide high quality products and best service.
4. Good production capacity and fast delivery.
